Polygim Diamond CSB IV
Polygim Diamond CSB IV – Machine Features

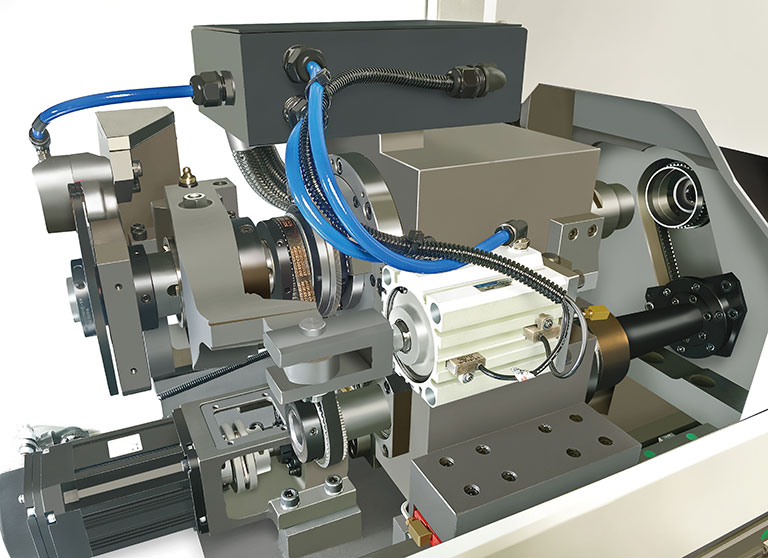

Cross travel sub-spindle
Cross travel sub-spindle design. The main and sub spindles can work either one at a time or simultaneously for reduced machining duration. This design brings multi-function front and rear machining.
Short remnant material
With the optional rough material bushing, the remnant material can be 50mm (depending on the part length).
Raw material machining
0.1mm material tolerance can be achieved by using the Rough material bushing.

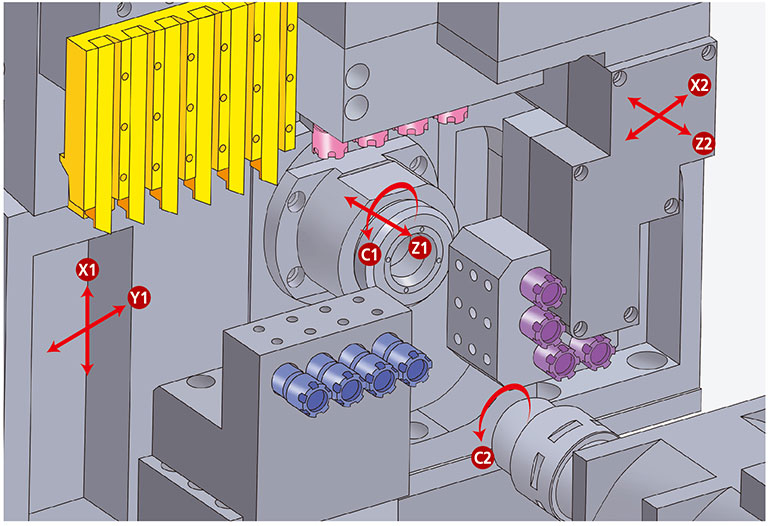

The main / sub-spindle are equipped with built-in motor, standard with C axis orientation, and optional high-analysis CS axis.

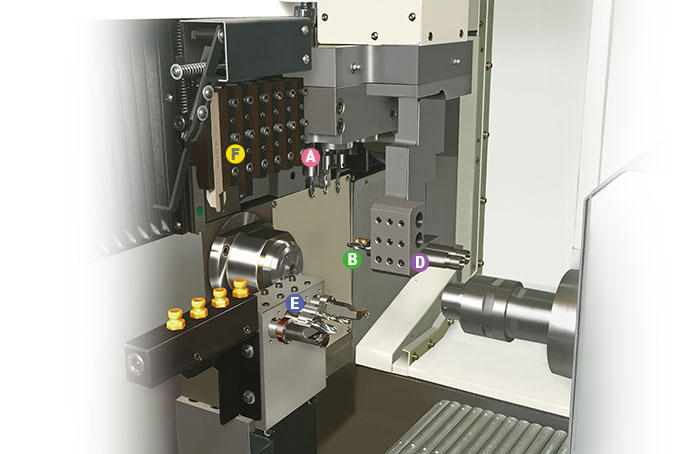

Examples
- 4 pcs cross working driven tool holder
- 4 pcs I.D. stationary tool holder
- 3 pcs front working driven tool holder (opt.)
- 4 pcs back I.D. stationary tool holder
- 4 pcs back I.D. stationary tool holder
- 6 pcs O.D. turning tool holder

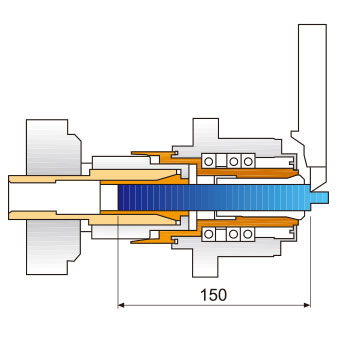

Using Live Bushing with Guide Bush (Remnant Material 150 mm).

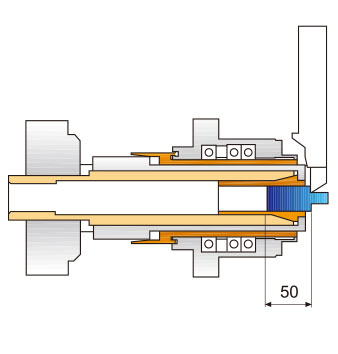

Using Rough Material Bushing without Guide Bush (Remnant Material 50 mm).

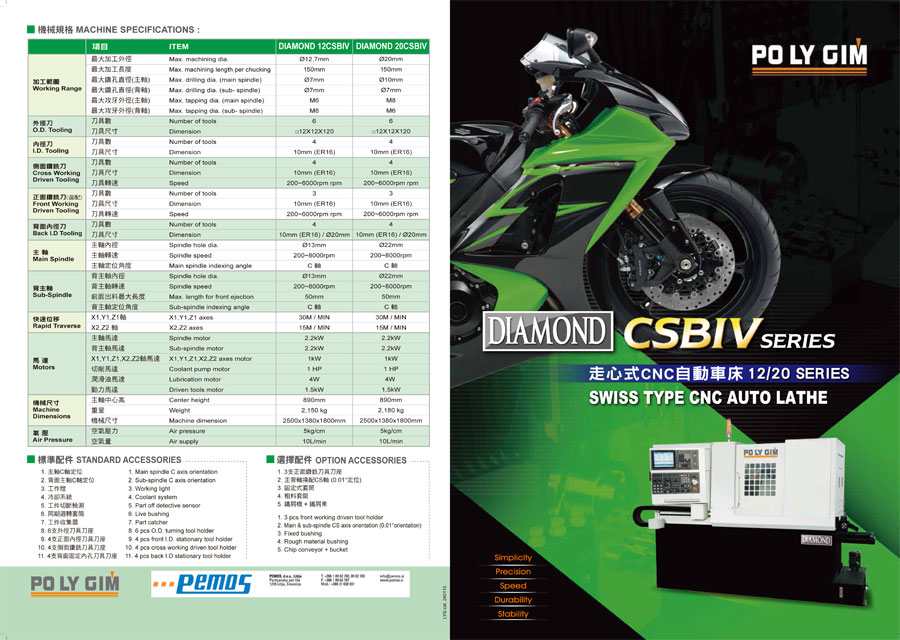

| DIAMOND 12CSBIV | DIAMOND 20CSBIV | |
|---|---|---|
| Max. machining dia. | Ø12.7 mm | Ø20 mm |
| Max. machining length per chucking | 150 mm | 150 mm |
| Max. drilling dia. (main spindle) | Ø7 mm | Ø10 mm |
| Max. drilling dia. (sub- spindle) | Ø7 mm | Ø7 mm |
| Max. tapping dia. (main spindle) | M6 | M8 |
| Max. tapping dia. (sub- spindle) | M6 | M6 |
| O.D. Tooling (Number of tools) | 6 | 6 |
| O.D. Tooling (Dimension) | □12 x 12 x 120 | □12 x 12 x 120 |
| I.D. Tooling (Number of tools) | 4 | 4 |
| I.D. Tooling (Dimension) | 10 mm (ER16) | 10 mm (ER16) |
| Cross Working Driven Tooling (Number of tools) | 4 | 4 |
| Cross Working Driven Tooling (Dimension) | 10 mm (ER16) | 10 mm (ER16) |
| Cross Working Driven Tooling (Speed) | 200~6000 rpm | 200~6000 rpm |
| Front Working Driven Tooling (Number of tools) | 3 | 3 |
| Front Working Driven Tooling (Dimension) | 10 mm (ER16) | 10 mm (ER16) |
| Front Working Driven Tooling (Speed) | 200~6000 rpm | 200~6000 rpm |
| Back I.D Tooling (Number of tools) | 4 | 4 |
| Back I.D Tooling (Dimension) | 10 mm (ER16) / Ø20 mm | 10 mm (ER16) / Ø20 mm |
| Main Spindle hole dia. | Ø13 mm | Ø22 mm |
| Main Spindle speed | 200~8000 rpm | 200~8000 rpm |
| Main spindle indexing angle | C 軸 | C 軸 |
| Sub-spindle hole dia. | Ø13 mm | Ø22 mm |
| Sub-spindle speed | 200~8000 rpm | 200~8000 rpm |
| Max. length for front ejection | 50 mm | 50 mm |
| Sub-spindle indexing angle | C axes | C axes |
| Rapid Traverse (X1,Y1,Z1 axes) | 30 M / MIN | 30 M / MIN |
| Rapid Traverse (X2,Z2 axes) | 15 M / MIN | 15 M / MIN |
| Spindle motor | 2.2 kW | 2.2 kW |
| Sub-spindle motor | 2.2 kW | 2.2 kW |
| X1,Y1,Z1,X2,Z2 axes motor | 1 kW | 1 kW |
| Coolant pump motor | 1 HP | 1 HP |
| Lubrication motor | 4 W | 4 W |
| Driven tools motor | 1.5 kW | 1.5 kW |
| Machine center height | 890 mm | 890 mm |
| Machine weight | 2150 kg | 2180 kg |
| Machine dimension | 2500 x 1380 x 1800 mm | 2500 x 1380 x 1800 mm |
| Air pressure | 5 kg/cm | 5 kg/cm |
| Air supply | 10 L/min | 10 L/min |
