Polygim Diamond CSL 25/32/42
Discover the future of precision machining with our Sliding Head Turning solutions. These machines bring together Swiss Type CNC technology and advanced sliding head capabilities for unparalleled accuracy. Ideal for intricate parts and complex geometries, our Sliding Head Turning machines are engineered for high-speed, high-quality output. Elevate your machining process to new heights of efficiency with these cutting-edge systems.

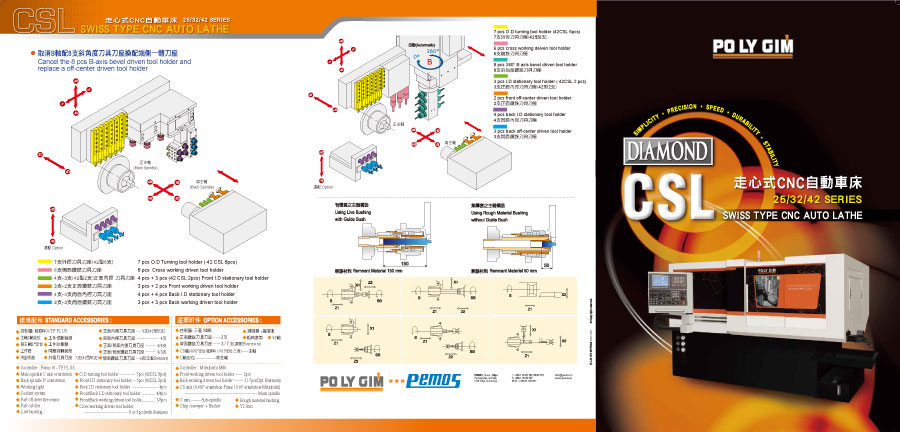

Polygim Diamond CSL 25/32/42 – Machine Features

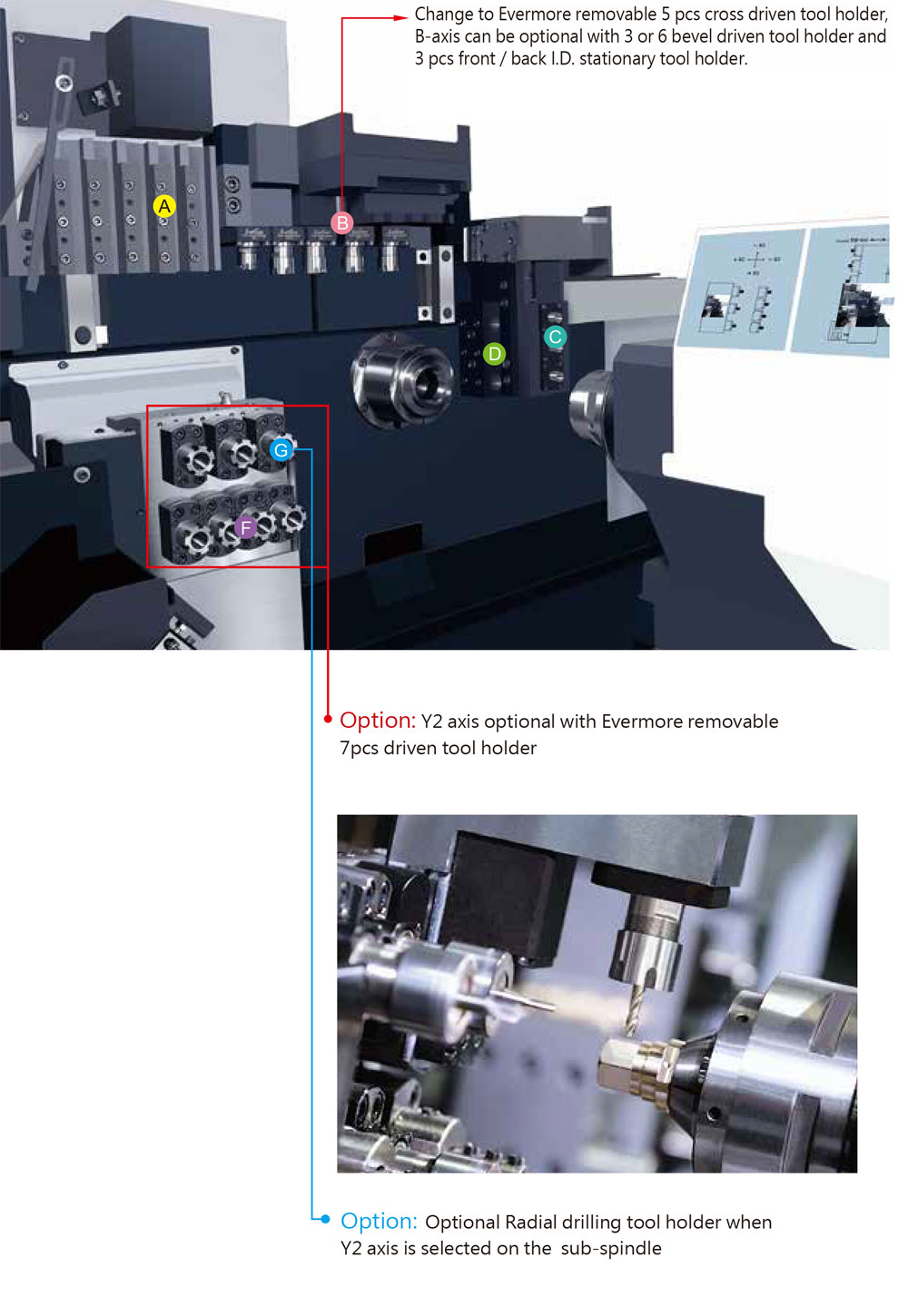

Cross spindle and bevel driven tool holes will help you to do drilling, milling and tapping on cross side and bevel.

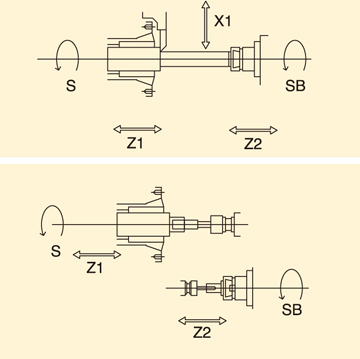

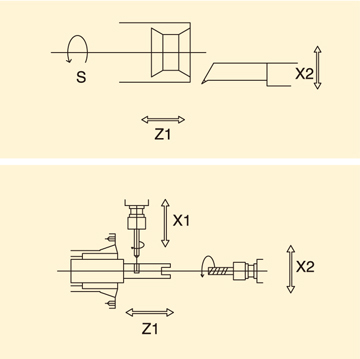

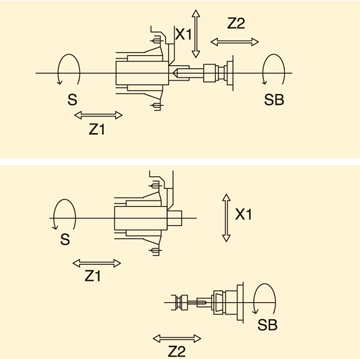

Cross travel sub-spindle design, the main and sub-spindle can work either one at a time or simultaneously for reduced machining duration.
This design bring multi-function front and rear machining. The B-axis bevel driven tool holder can be rotated 360 degrees tofacilitate bevel drilling, milling and tapping with the main and rear spindle.

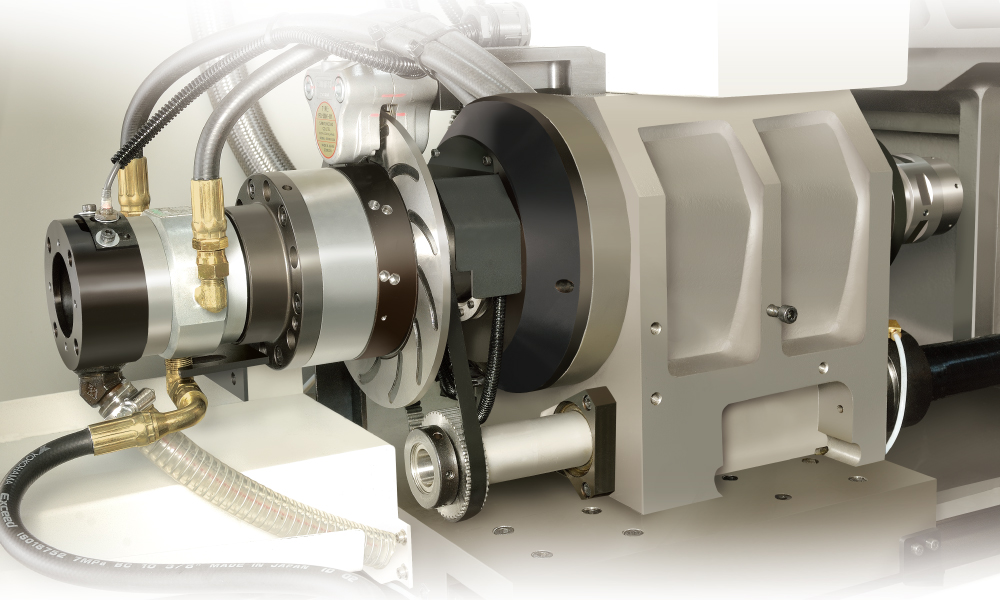

Main spindle is equipped with built-in motor, and the standard is equipped with C axis. A high-analytic CS axis is optional.
Sub-spindle is equipped with servo motor, and the standard is 5 degree indexing. C-axis is optional.
There are 2 fixed and 2 power drills on the tool holder beside the sub-spindle, which can move forward and backward. It is suitable for deep hole processing.
Examples
Model: Swiss Type CNC Lathe (Sliding Head Turning) - DIAMOND 25/32/42 CSL

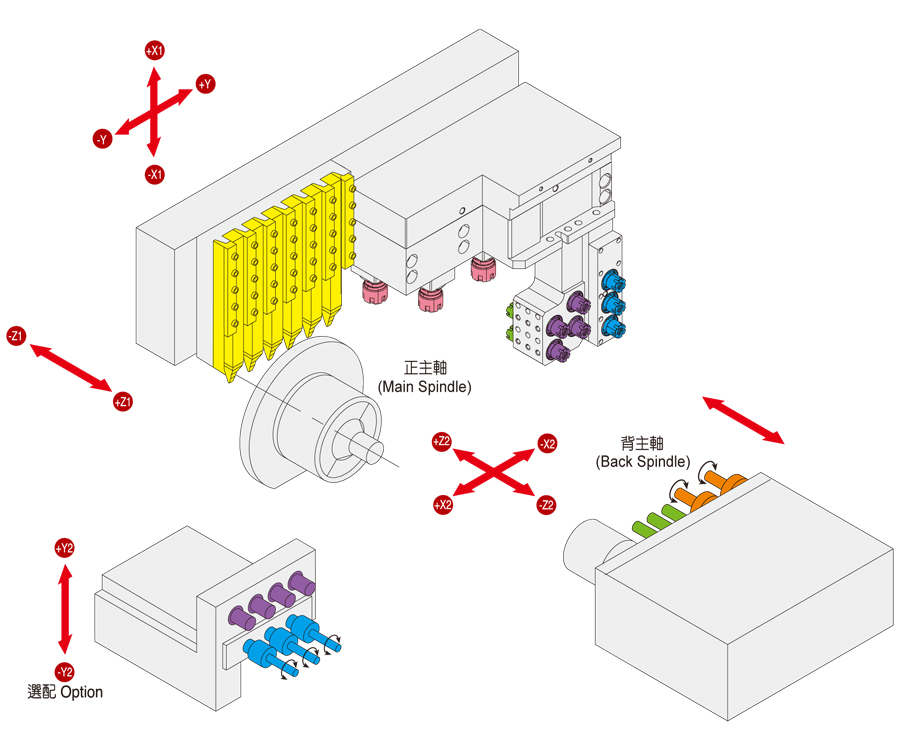

- 6 pcs O.D Turning tool holder ( 42 CSL 5pcs)
- 6 pcs Cross working driven tool holder
- 3 / 6 pcs Bevel driven tool holder
- 2 pcs I.D stationary tool holder
- 2 pcs Front working driven tool holder
- 4 pcs Back I.D stationary tool holder
- 3 pcs Back working driven tool holder

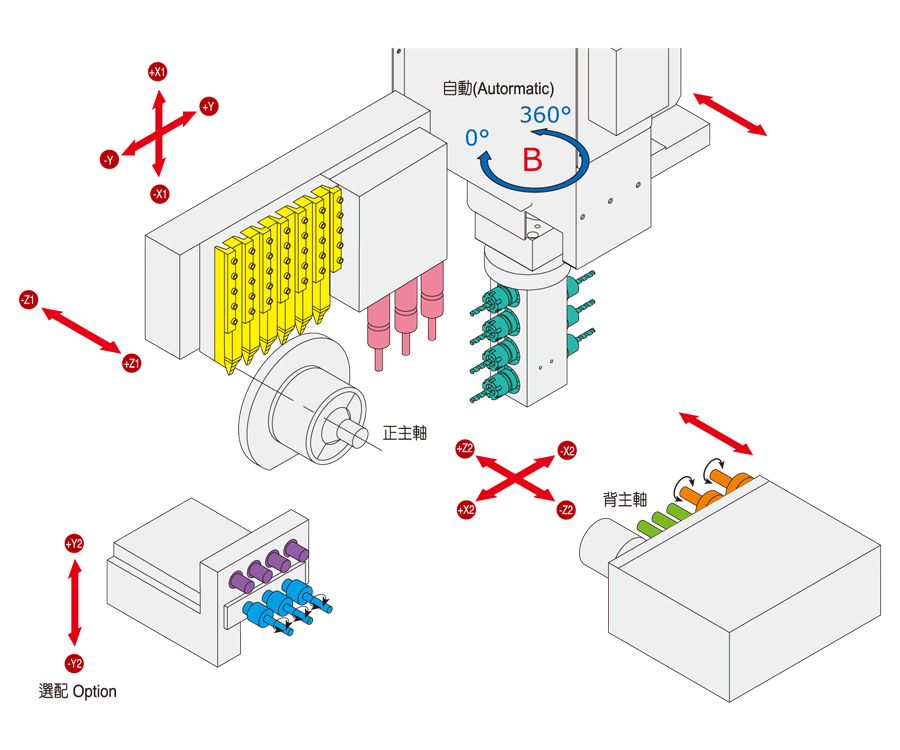

- 7 pcs O.D turning tool holder (42CSL 6pcs)
- 6 pcs cross working deiven tool holder
- 8 pcs 360° B axis bevel driven tool holder
- 3 pcs I.D stationary tool holder ( 42CSL 2 pcs)
- 2 pcs front off-center driven tool holder
- 4 pcs back I.D stationary tool holder
- 3 pcs back off-center driven tool holder

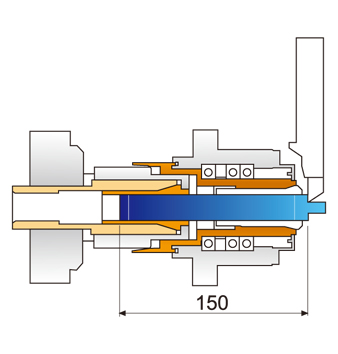

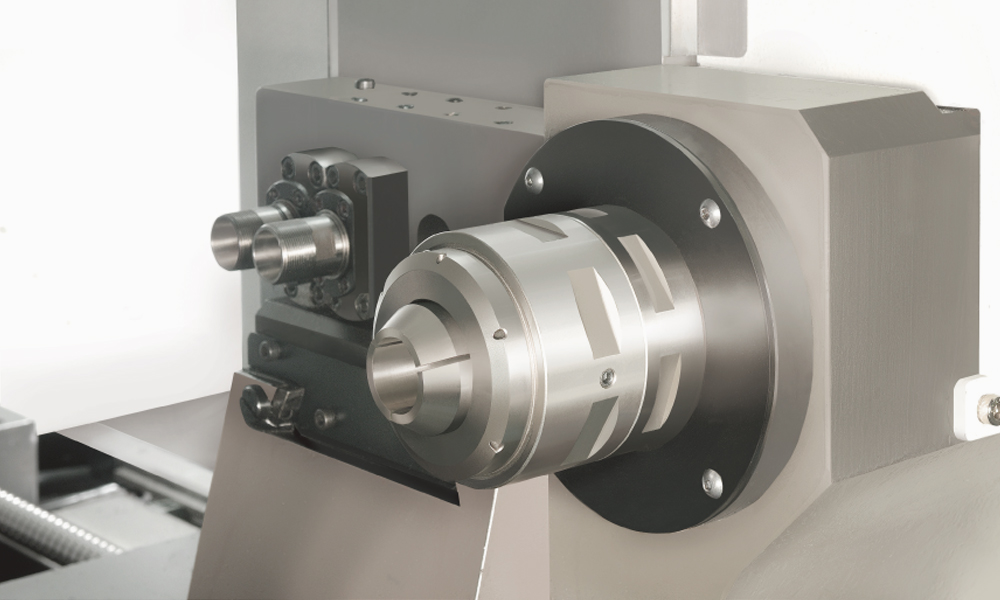

Using Live Bushing with Guide Bush (Remnant Material 150 mm).

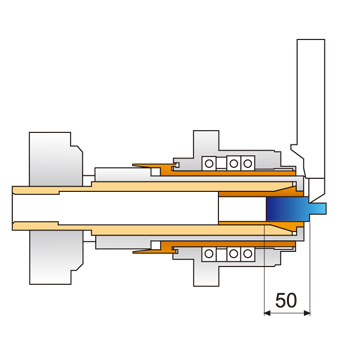

Using Rough Material Bushing without Guide Bush (Remnant Material 50 mm).

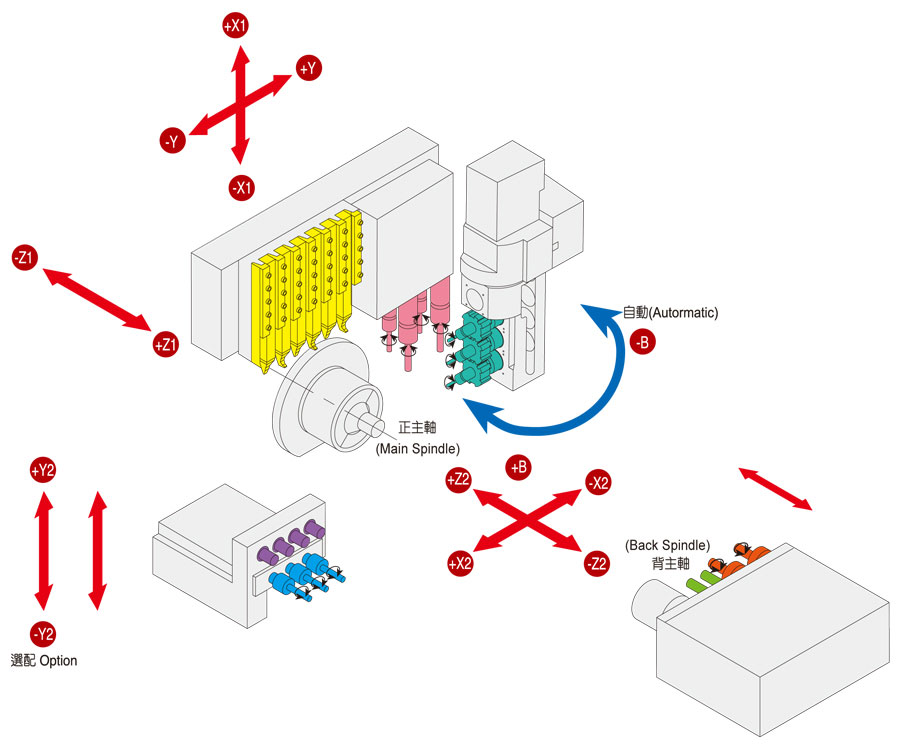

Cancel the 8 pcs B-axis bevel driven tool holder and replace a off-center driven tool holder.
- 7 pcs O.D Turning tool holder ( 42 CSL 6pcs)
- 6 pcs Cross working driven tool holder
- 4 pcs + 3 pcs (42 CSL 2pcs) Front I.D stationary tool holder
- 3 pcs + 2 pcs Front working driven tool holder
- 4 pcs + 4 pcs Back I.D stationary tool holder
- 3 pcs + 3 pcs Back working driven tool holder
| 25 CSL | 32 CSL | 42 CSL | |
|---|---|---|---|
| Max. Turning Dia. | Ø26mm | Ø32mm | Ø42mm |
| Max. maching length per chucking | 250mm | 250mm | 250mm |
| Max. Drilling Dia. | Ø26mm | Ø26mm | Ø26mm |
| Max. Tapping Dia | M16 | M16 | M16 |
| O.D.Tooling(B axis with 3/6 pcs) | 6 | 6 | 5 |
| O.D.Tooling(B axis with 8 pcs) | 7 | 7 | 6 |
| O.D.Tool Dimension | □16x16x120 | □16x16x120 | □16x16x120 |
| (Front) I.D. Tooling(B axis with 3/6 pcs) | 2 | 2 | 2 |
| (Front) I.D. Tooling(B axis with 8 pcs) | 3 | 3 | 2 |
| Tool Dimension | 13 mm (ER20) | 13 mm (ER20) | 13 mm (ER20) |
| (Back) I.D.Tooling | 4 | 4 | 4 |
| Tool Dimension | 13 mm (ER20) | 13 mm (ER20) | 13 mm (ER20) |
| Cross Tooling | 6 | 6 | 6 |
| Tool Dimension | 13 mm (ER20) | 13 mm (ER20) | 13 mm (ER20) |
| Speed | 200~6000 r.p.m. | 200~6000 r.p.m. | 200~6000 r.p.m. |
| (Opt.) Bevel Drill / Mill Tooling(B axis with 3/6 pcs) | 3/6 | 3/6 | 3/6 |
| (Opt.) Bevel Drill / Mill Tooling(B axis with 8 pcs) | 8 | 8 | 8 |
| Tool Dimension | 13mm (ER20) | 13mm (ER20) | 13mm (ER20) |
| Speed | 100~6000rpm | 100~6000rpm | 100~6000rpm |
| (Opt.) Front Drilling Tooling | 2 | 2 | 2 |
| Tool Dimension | 13mm (ER20) | 13mm (ER20) | 13mm (ER20) |
| Speed | 200~6000rpm | 200~6000rpm | 200~6000rpm |
| (Opt.) Back Drilling Tooling | 3 | 3 | 3 |
| Tool Dimension | 13mm (ER20) | 13mm (ER20) | 13mm (ER20) |
| Speed | 100~4000rpm | 100~4000rpm | 100~4000rpm |
| Spindle Hole Dia. | Ø26mm | Ø33mm | Ø42mm |
| Spindle Speed | 200~7000rpm | 200~7000rpm | 200~5000rpm |
| Indexing | C axis | C axis | C axis |
| Back Spindle Hole Dia. | Ø25mm | Ø33mm | Ø42mm |
| Back Spindle Speed | 200~6000rpm | 200~6000rpm | 200~5000rpm |
| Indexing | 5° | 5° | 5° |
| Max. length for front ejection | 70mm | 70mm | 70mm |
| Max. workpiece projection length from the back spindle | 120mm | 120mm | 120mm |
| Max.Back Drilling Dia. | Ø16mm | Ø16mm | Ø16mm |
| Max. Back Tapping Dia. | M12 | M12 | M12 |
| Rapid Traverse (X1, Z1, Y1, X2, Z2 Axes) | 18 or 30 m/min | 18 or 30 m/min | 18 or 30 m/min |
| Rapid Traverse (Opt.) Y2 Axis) | 18 or 30 m/min | 18 or 30 m/min | 18 or 30 m/min |
| Main Spindle Motor | 3.7/5.5kW | 3.7/5.5kW | 18.5/30kW |
| Back Spindle Motor | 2.2kW | 2.2kW | 2.2kW |
| X1, Z1, Y1, X2, Z2 Axes Motor | 1.2kW | 1.2kW | 1.2kW |
| (Opt.) Y2, B Axes Motor | 0.75kW | 0.75kW | 0.75kW |
| Cross driven spindle Motor | 2.2kW | 2.2kW | 2.2kW |
| (Opt.) Bevel driven spindle Motor(B axis with 3/6 pcs) | 1kW | 1kW | 1kW |
| (Opt.) Bevel driven spindle Motor(B axis with 8 pcs) | 2.2kW | 2.2kW | 2.2kW |
| (Opt.) Back driven spindle Motor | 0.75kW | 0.75kW | 0.75kW |
| (Opt. Y2 Axis) Back driven spindle Motor | 1kW | 1kW | 1kW |
| Coolant Pump | 0.75kw x 2 | 0.75kw x 2 | 0.75kw x 2 |
| Lubrication | 4w x 2 | 4w x 2 | 4w x 2 |
| Center Height | 960mm / 1020mm(a plug-in electrical cabinet) | 960mm / 1020mm(a plug-in electrical cabinet) | 960mm / 1020mm(a plug-in electrical cabinet) |
| Weight(Standard) | 3988 / 4368(Opt. Y2) | 3988 / 4368(Opt. Y2) | 4088 / 4468(Opt. Y2) |
| Weight(a plug-in electrical cabinet) | 4550 / 4930(Opt. Y2) | 4550 / 4930(Opt. Y2) | 4650 / 5030(Opt. Y2) |
| Machine Size(Standard) | 3000x1540x1940 mm | 3000x1540x1940 mm | 3000x1540x1940 mm |
| Machine Size(a plug-in electrical cabinet) | 3220x1800x2005 mm | 3220x1800x2005 mm | 3220x1800x2005 mm |
| Air Pressure | 5kg/cm | 5kg/cm | 5kg/cm |
| Air Supply | 10L/min | 10L/min | 10L/min |
