Polygim Diamond CSL 42-2Y
Polygim Diamond CSL 42-2Y – Machine Features

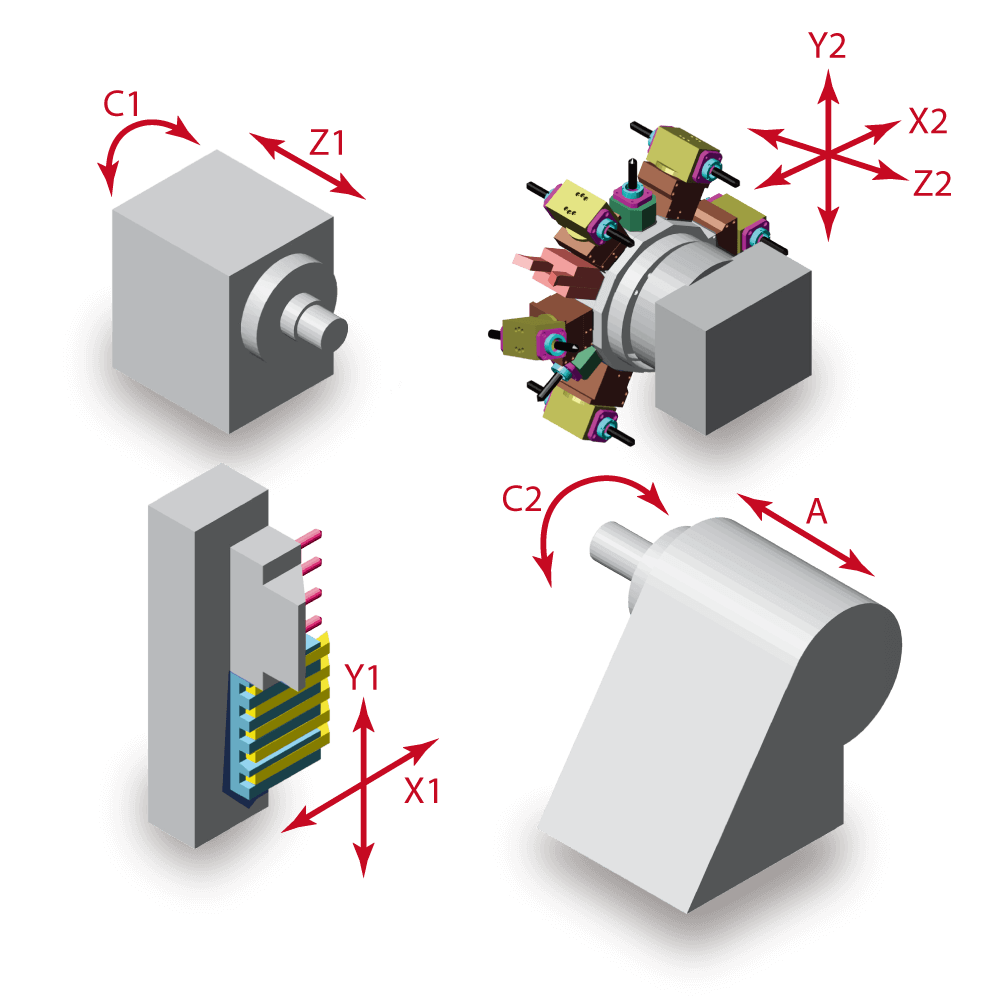

Diamond CSL 42-2Y offers up to 9 axes complex manufacturing capability using the most advanced multi-axes control system.
Using Rough Material Bushing with Guide Bush (Remnant Material 50 mm).
Using Live Bushing with Guide Bush (Remnant Material 150 mm).
| Y1 (System 1) | Y2 (System 2) | |
|---|---|---|
| Max. Machining Dia. | Ø42 mm | Ø42 mm |
| Max. Machining Length | 280 mm | |
| Max. Drilling Capacity | Ø30 mm | Ø30 mm |
| Max. Tapping Capacity | M16 | M16 |
| O.D. Turning Tool | 5 | |
| O.D. Turning Tool Dimension | □20x20x120 | |
| Cross Tool (power – driven tool) | 4 | |
| Cross Tool Dimension | 16 mm (ER25) | |
| Cross Tool Speed | 200~6000 rpm | |
| Power - driven Tool / Station | 12 | |
| O.D. Tool Dimension | □20 x 20 | |
| I.D. Tool Dimension | Ø25 mm | |
| Max. O.D. Turning Tool / Station | 6 | |
| Max. I.D. bore Tool / Station | 6 | |
| Power – driven Tool Dimension | 16 mm (ER25) | |
| Power – driven Tool Speed | 200~4000 rpm | |
| Max. Radial Mill / Drill Tool / Station | 12 | |
| Max. Axial Mill / Drill Tool / Station | 12 | |
| Spindle Hole Dia. | Ø42 mm | |
| Spindle Speed | 200~6000 rpm | |
| Sub-spindle Hole Dia. | Ø42 mm | |
| Sub-spindle Speed | 200~6000 rpm | |
| Max. Length for Front Ejection | 120 mm | |
| Sub-spindle Max. Drilling Dia. | Ø30 mm | |
| Ø30 mm | M16 | |
| Rapid Speed A axis | 30m/min | |
| Rapid Speed X1, Z1, Y1 axes | 30m/min | |
| Rapid Speed X2, Z2, Y2 axes | 30m/min | |
| Travel A axis | 460 mm | |
| Travel X1 axis | 45 mm | |
| Travel Z1 axis | 300 mm | |
| Travel Y1 axis | 360 mm | |
| Travel X2 axis | 130 mm | |
| Travel Z2 axis | 480 mm | |
| Travel Y2 axis | 185 mm | |
| Main Spindle | 7.5 kW | |
| Sub-spindle | 7.5 kW | |
| Y1, Y2 axes | 1.5 kW | 2.2 kW |
| A, X1, Z1, X2, Z2 axes | 1.0 kW | 1.0 kW |
| Rotary Tools | 2.2 kW | 2.2 kW |
| Coolant Pump | 1 HP | 1 HP |
| Lubrication | 25 w | 25 w |
| Center Height | 960 mm | 960 mm |
| Weight | 6380 kgs | 6380 kgs |
| Dimension | 3000 x 1800 x 1980 mm | 3000 x 1800 x 1980 mm |
| Air Pressure | 5 kg/cm | 5 kg/cm |
| Air Supply | 10 L/min | 10 L/min |
